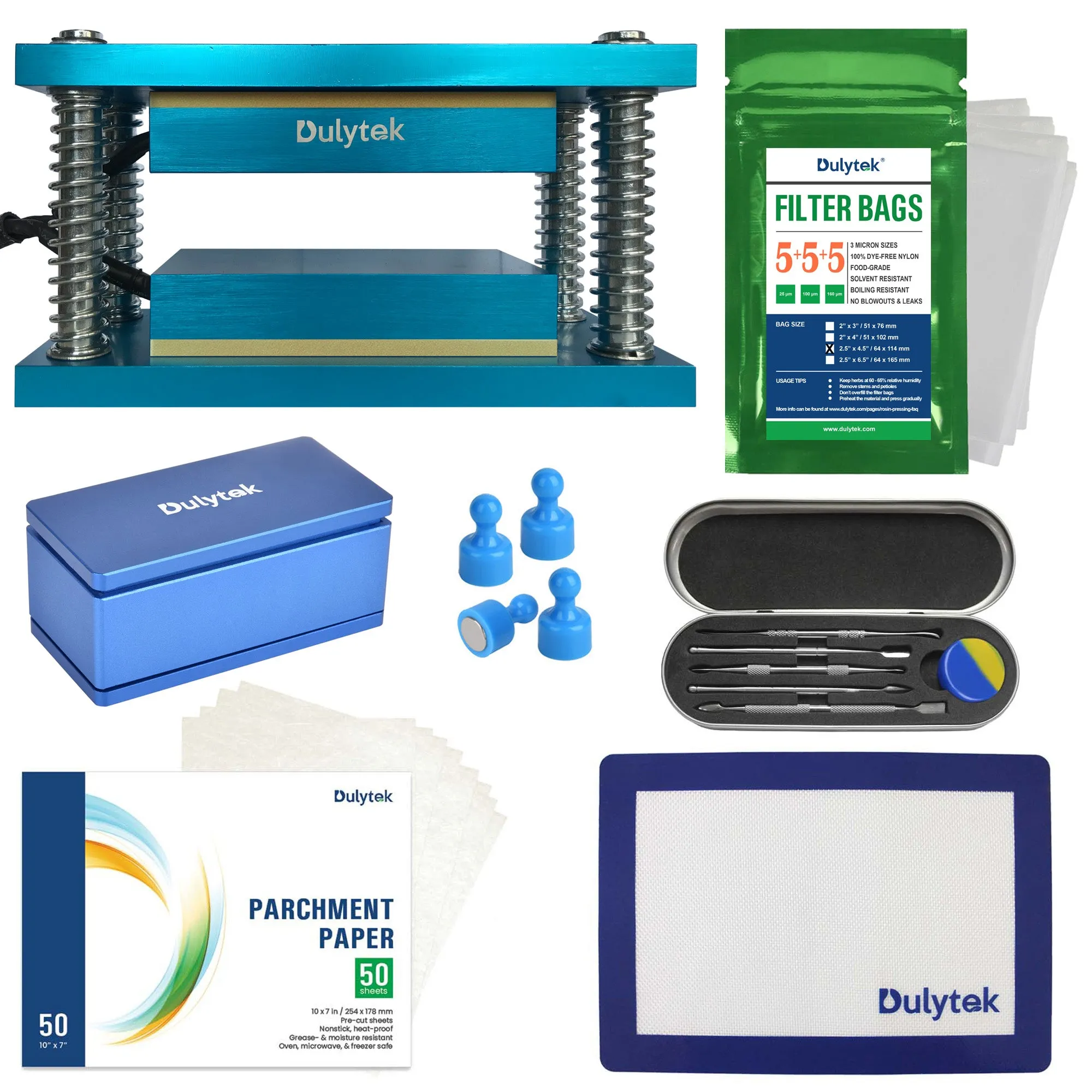

The bundle consists of Dulytek® 3" x 6" retrofit rosin heat plate kit and all accessories and supplies needed to make your home heat pressing a breeze: a 2 by 4 inch rectangular pre-press mold, 2.5" x 4.5" mixed mesh size filter bags, 50-sheet pack of parchment paper, non-stick silicone mat, 6-piece tool set and 4 magnetic pins. The caged heat plate kit itself features 3 by 6 inch anodized aluminum plates and a compact two-channel temperature and timer controller that is equipped with magnetic feet for easy mounting anywhere on your press.
The bundle is available in two versions: 110V for North American and 220V for European and Australian customers. Please note that the 220V presses are not shipped to US and Canada addresses.
| Technical Specifications | ||
|---|---|---|
| DHPK36 Plate Kit | Force: | up to 40000 lb / 20 Ton |
| Plates: | 3 x 6 inch / 76 x 152 mm; dual heating; insulated; aluminum | |
| Temp. Range: | up to 302 °F / 150 °C | |
| Weight: | 12.8 lbs / 5.8 kg | |

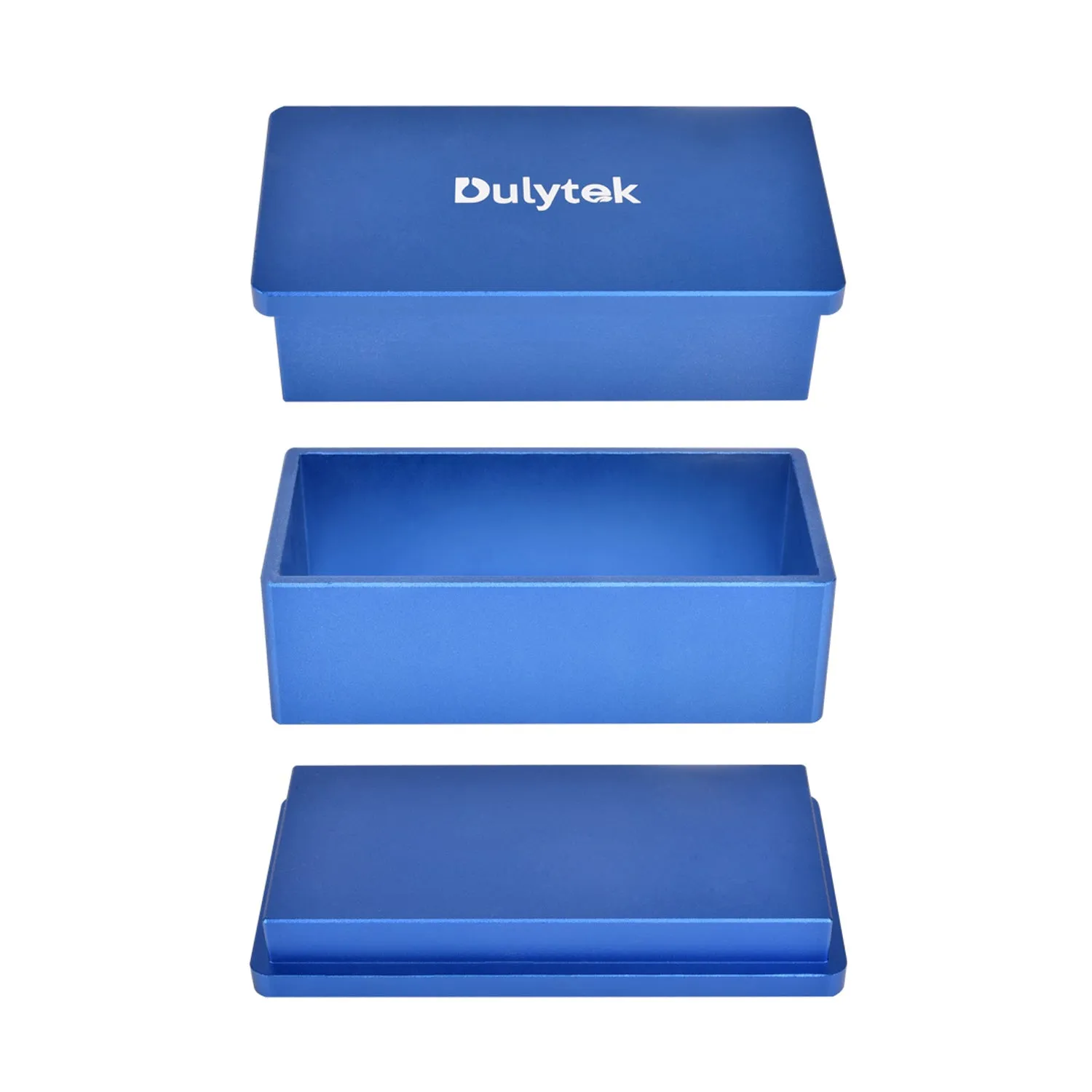

| Pre-Press Mold | Internal Dimensions: | 1-3/4 x 3-3/4 inch / 45 x 95 mm |
| Assembled Dimensions: | 4 x 2 x 2 inch / 100 x 50 x 50 mm | |
| Material: | Anodized aluminum | |

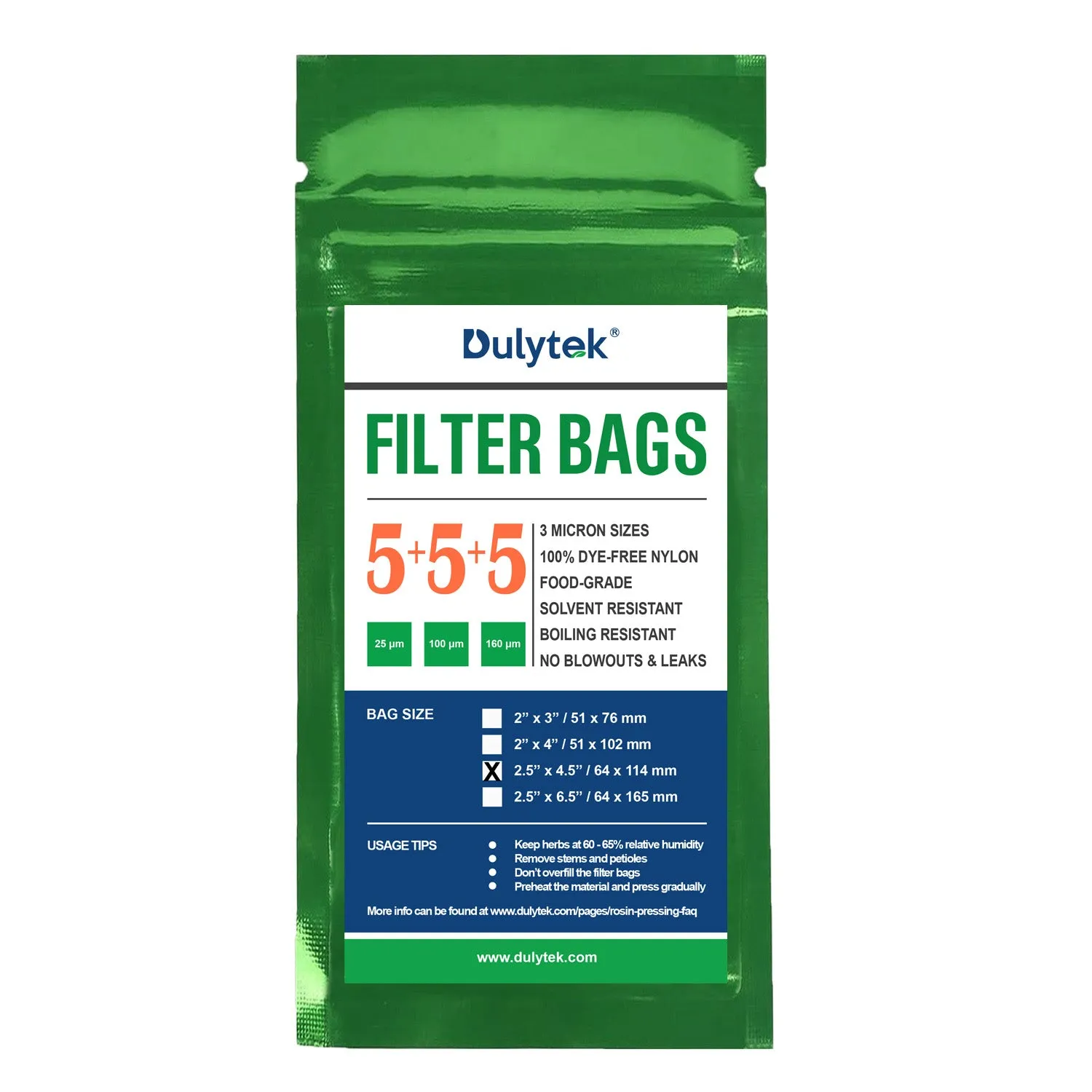

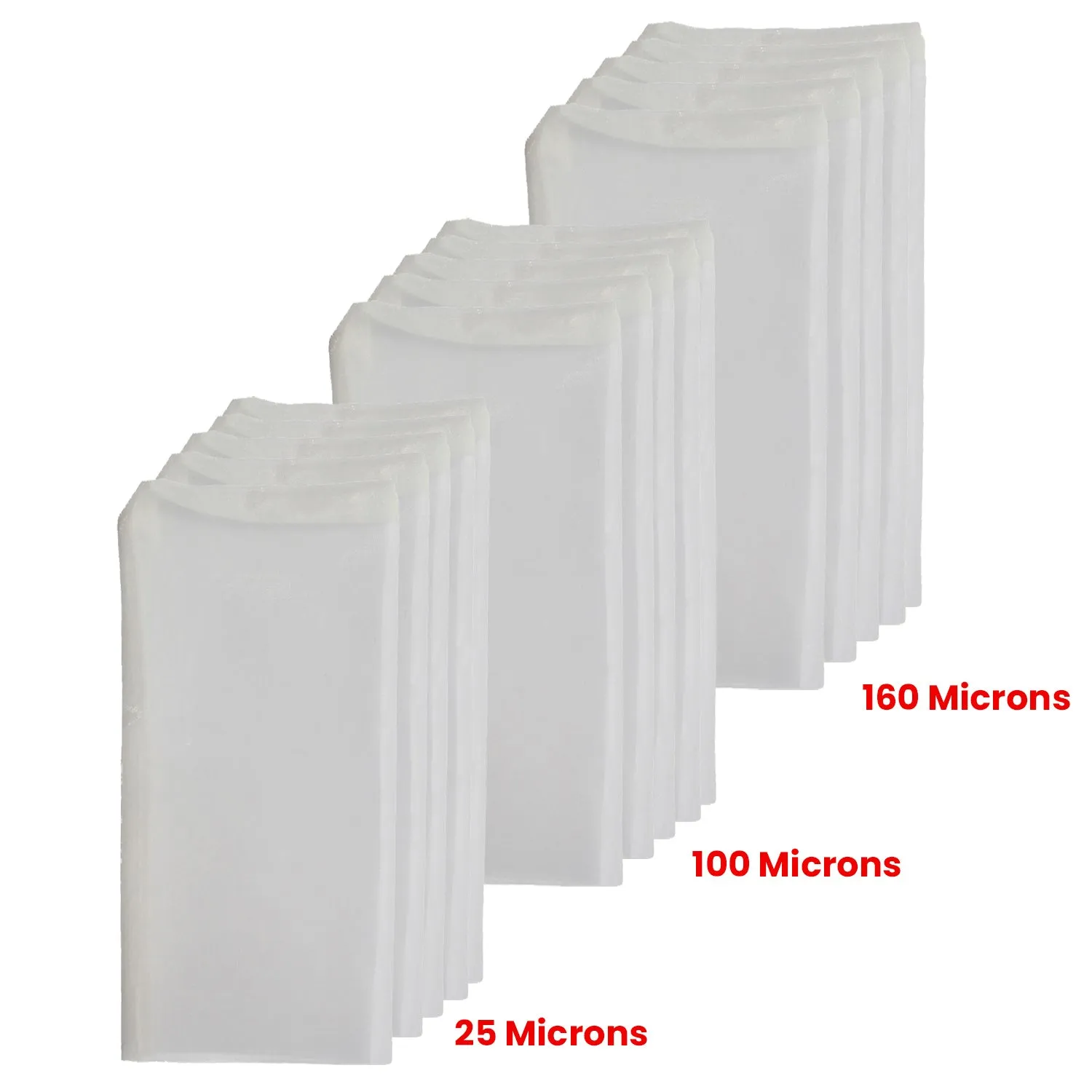

| Filter Bags | Mesh Sizes / Quantity: | 25, 100, and 160 μm included / 5 bags each / 15 bags total |
| Dimensions: | 2.5" x 4.5" / 64 mm x 114 mm | |
| Material: | 100% Nylon | |

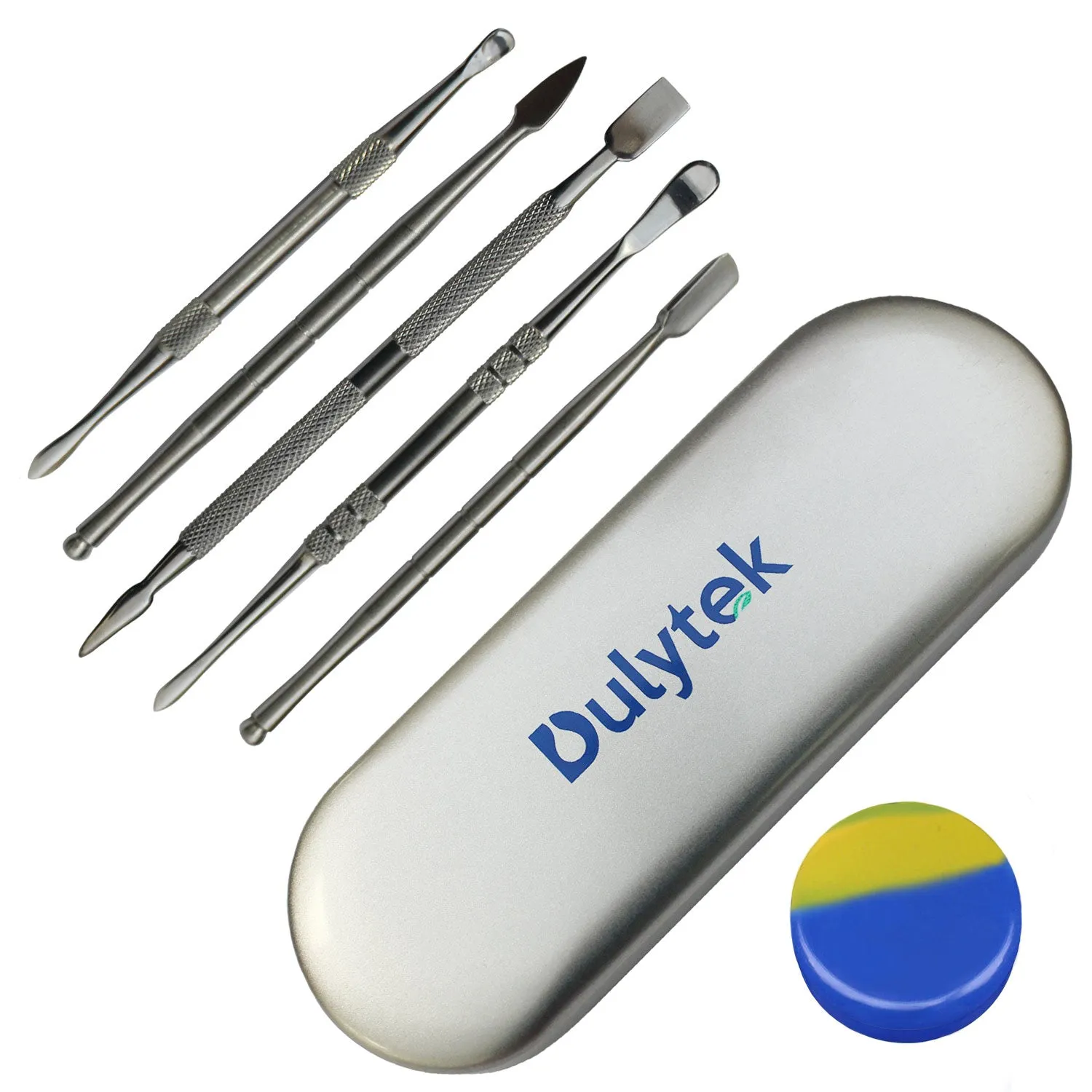

| Tool set | Tools: | 5 double ended; stainless steel |
| Lidded Jar: | 3 ml; food-grade silicone | |

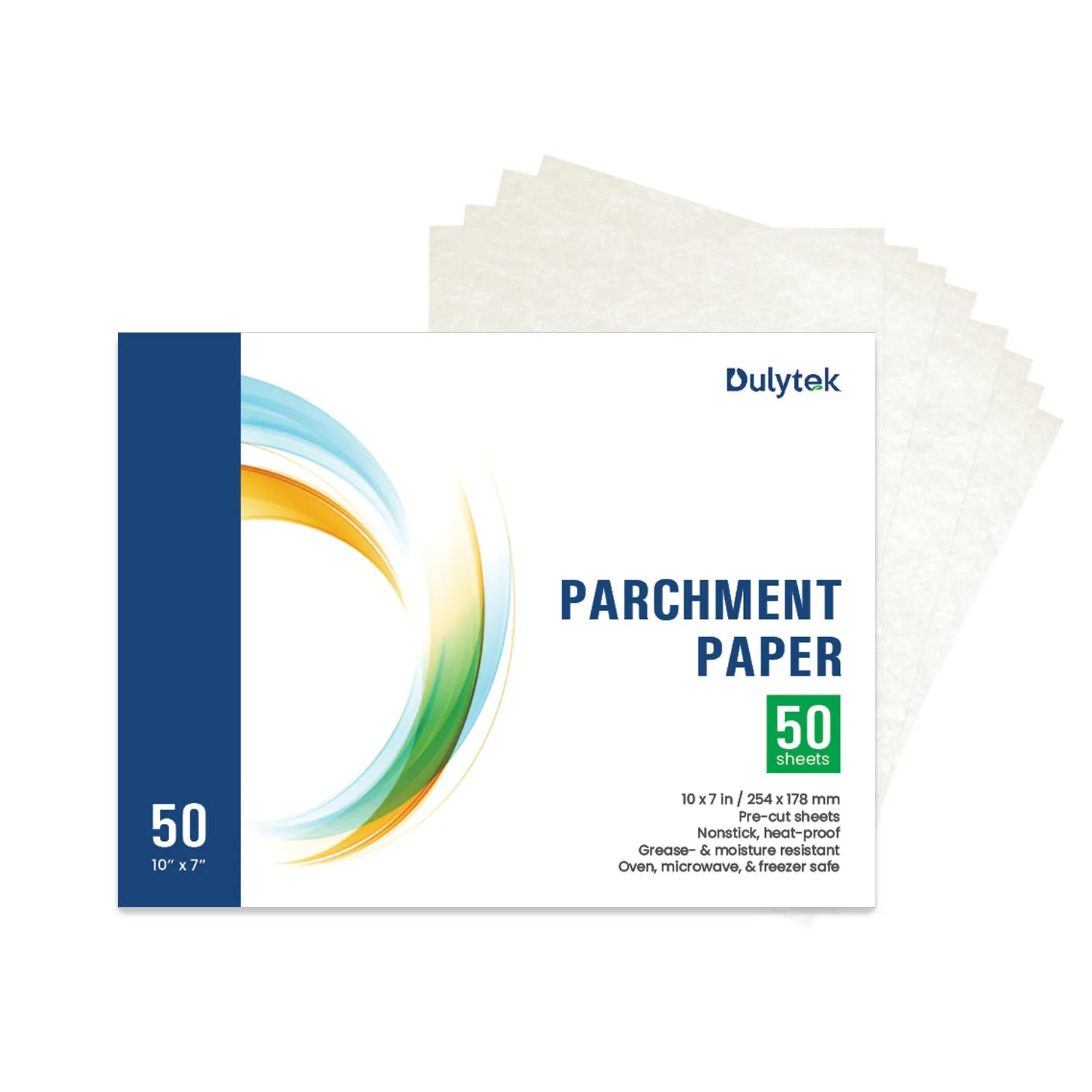

| Parchment paper | Size / Quantity: | 10" x 7"; 50 sheets |
| Material: | 20lbs / 30gsm; silicone coated | |

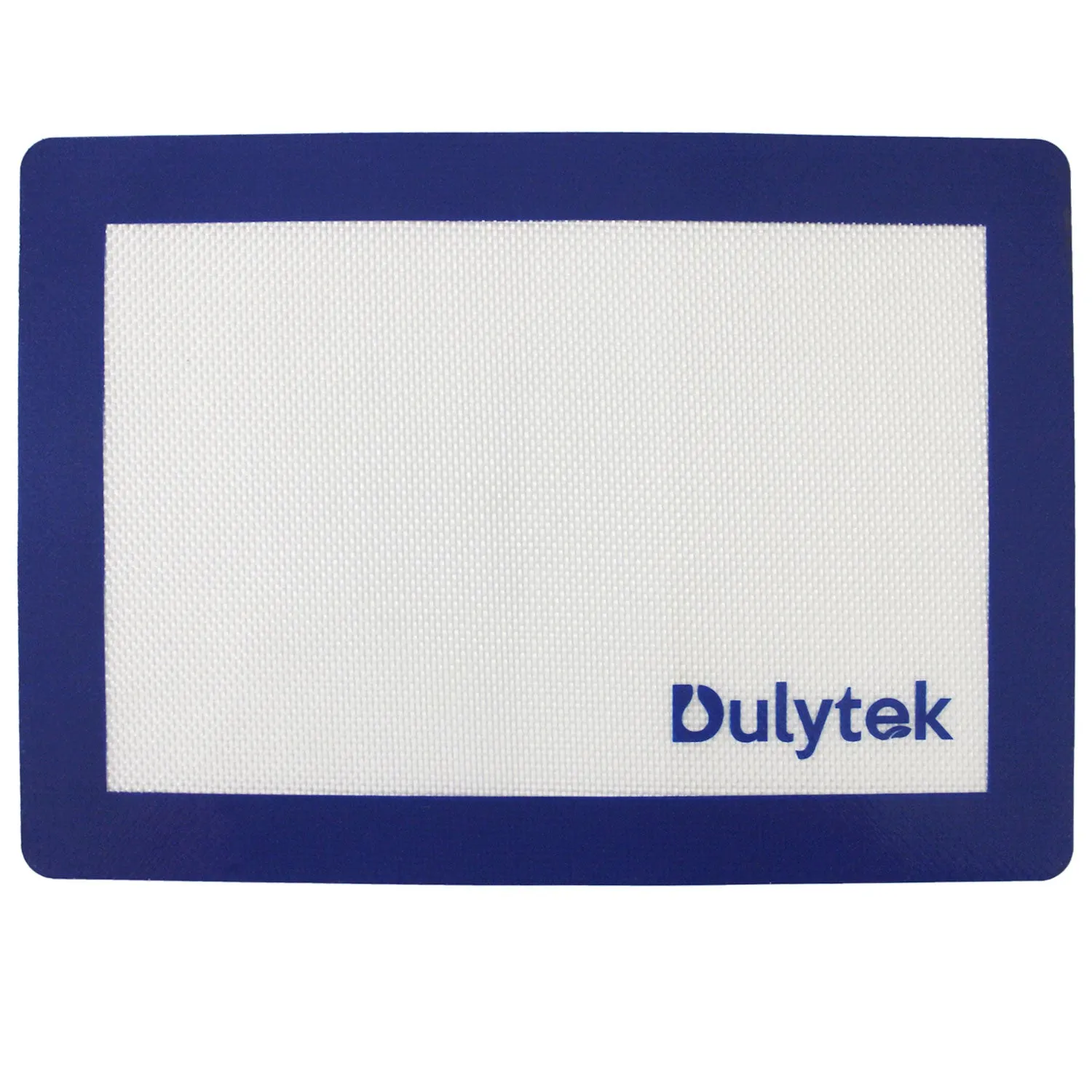

| Non-stick Mat | Size: | 12" x 8.25" / 30 cm x 21 cm |
| Material: | Food-grade silicone | |

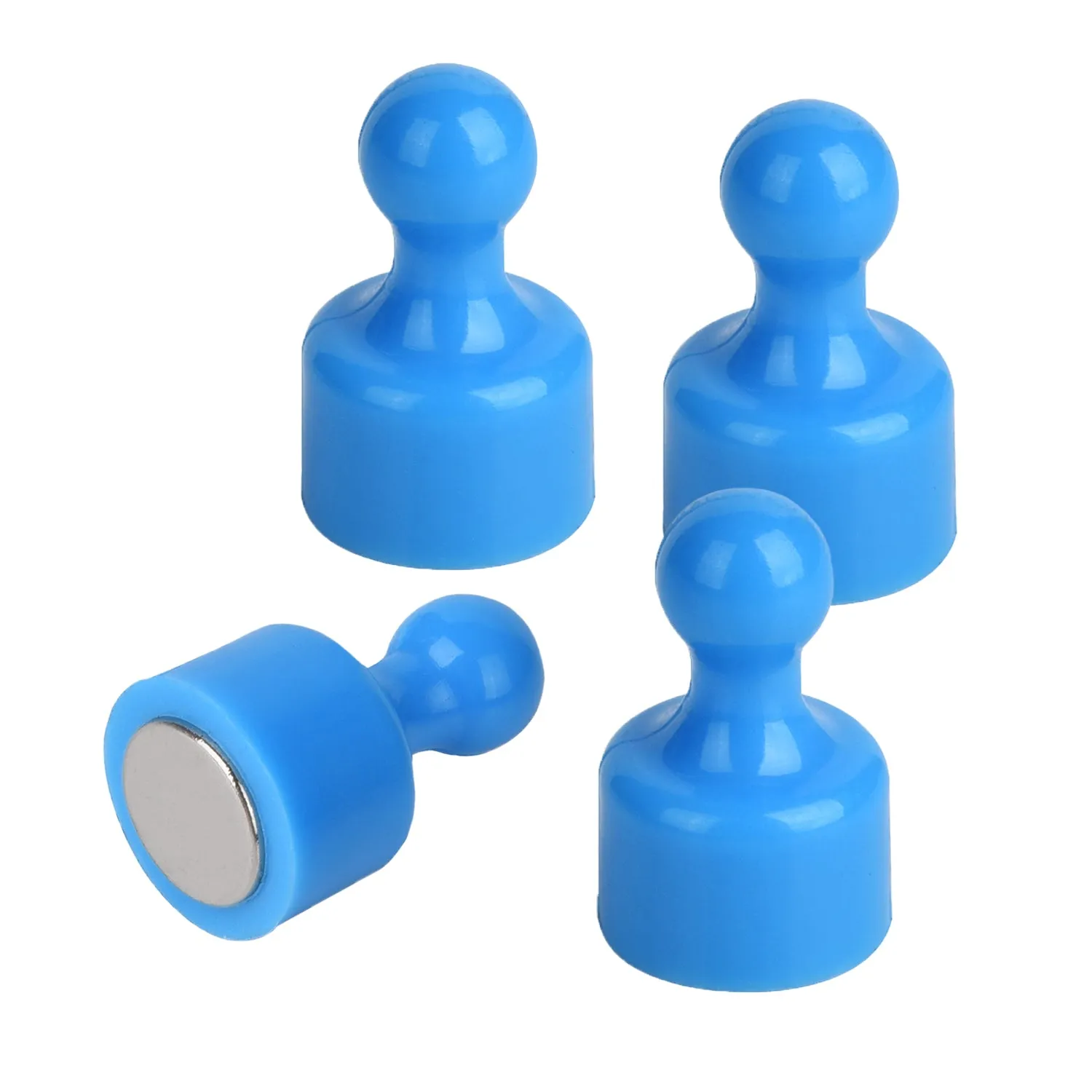

| Magnets | Quantity: | 4 |
